2.2KW Air-cooled Spindle Motor Specification:

• Air-cooled
• German bearings
• 80*215mm
• Power: 2.2KW
• Voltage: 220V
• Frequency: 0-400HZ
• Speed: 0-24000RPM
• Collet: ER-20
• Runout: Less than 0.005mm


2.2KW VFD specification:

• Input voltage: 220V+/15% 20Amp

• Output voltage: 208-240V (Analogous to Input voltage)
• Input Frequency: 48-63HZ
• Output Frequency: 0-400HZ
• Input Phase: 1 phase, 3 Phase

• Output: 3 Phase

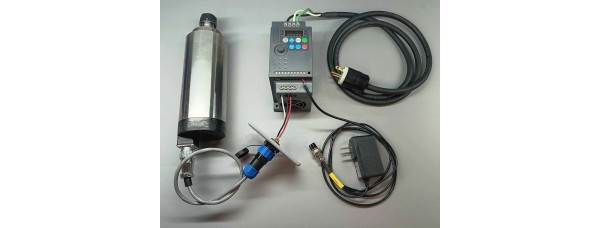

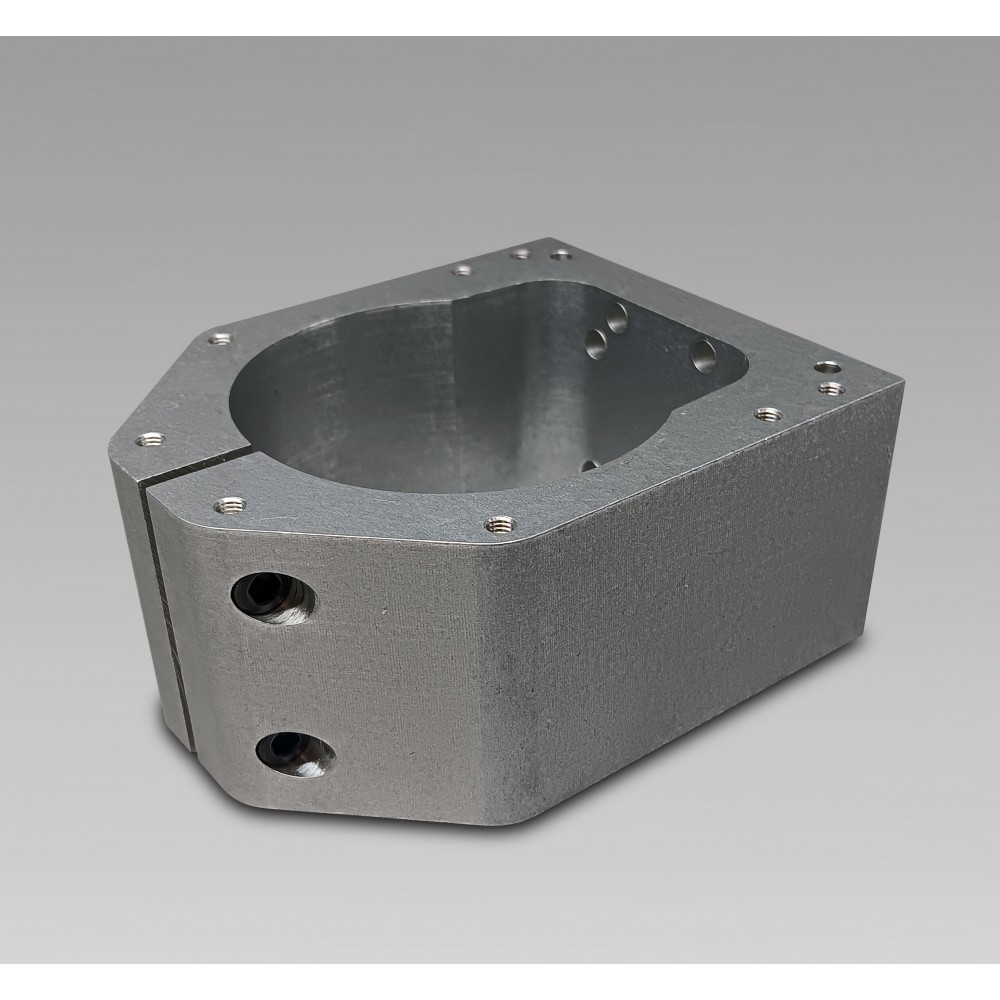

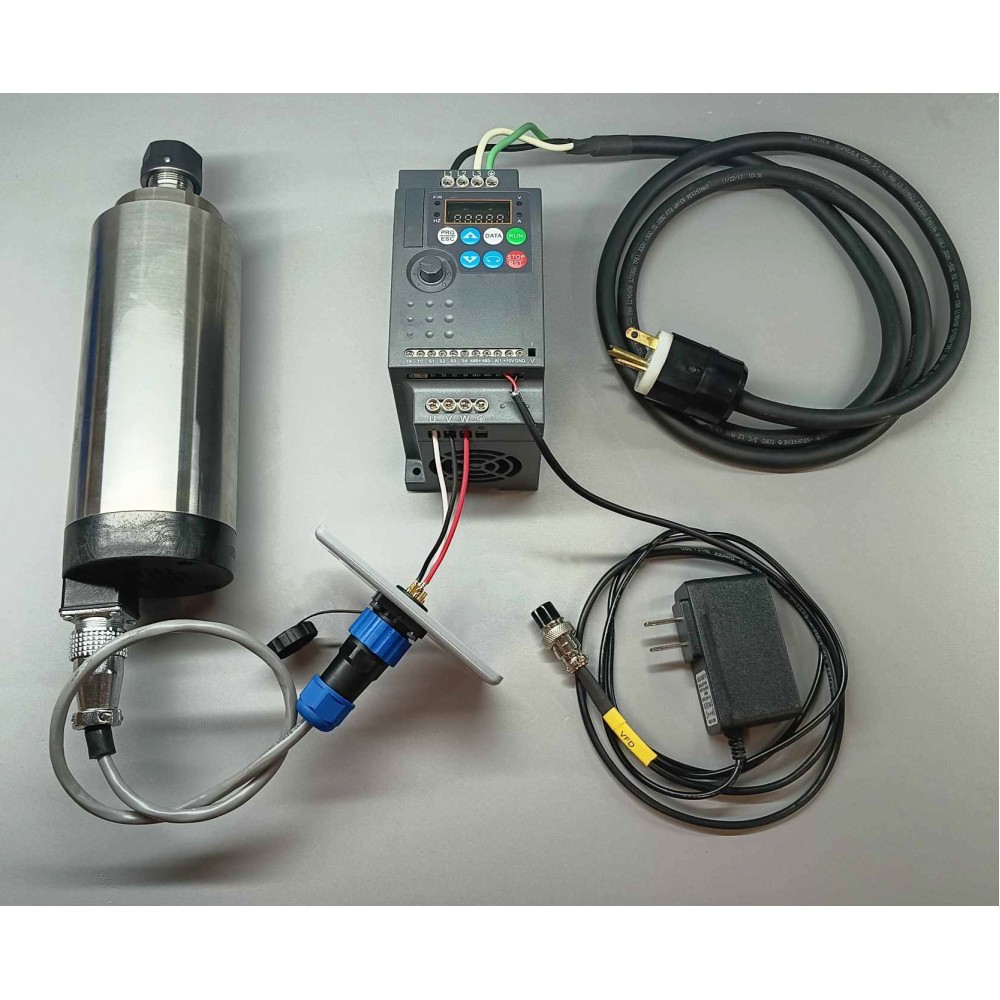

Also includes 80mm mount, gantry plate, final spindle pigtail, 24V power source, and power cable. Hijack the existing 110VAC router wiring that already runs through your cable chain for the simplest VFD spindle upgrade.
